Mobile Unit

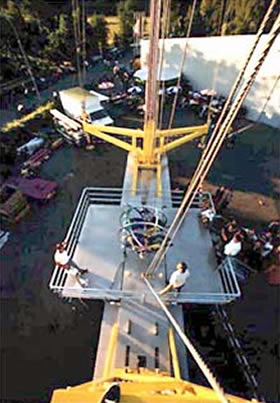

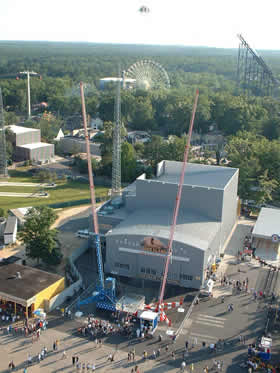

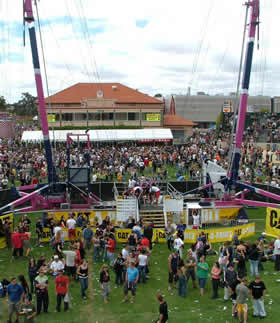

The Slingshot™ mobile unit is a trailer
mounted machine especially designed
for festival and carnival operators.
It is available in two models, one with
a 45 metre tower height and the
other with a 55 metre tower height, and
does not require a crane or fork
truck for erection.
| Technical Specifications,
Model Kingsize |
| Construction |
Trailer mounted |
| Tower Height |
55 meters |
| Capsule Height |
~ 75 meters |
| Width |
22 meters |
| Depth |
8 meters |
| Estimated Capacity |
60 passengers/hour |
| Power Required |
Maximum 80 kw |
| Weight |
42 ton |
| Operating Staff |
Minimum 3 |
| Estimated Set Up Time |
4 persons, 9 hours |
|
| Technical Specifications,
Model M45 |
| Construction |
Trailer mounted |
| Tower Height |
45 meters |
| Capsule Height |
~ 65 meters |
| Width |
22 meters |
| Depth |
10 meters |
| Estimated Capacity |
60 passengers/hour |
| Power Required |
Maximum 80 kw |
| Weight |
33 ton |
| Operating Staff |
Minimum 3 |
| Estimated Set Up Time |
4 persons, 6 hours |
Technical drawings in PDF
format:
|
