3 and 4 Tower

These innovative models were designed to meet the passenger capacity required from medium to large amusement parks.

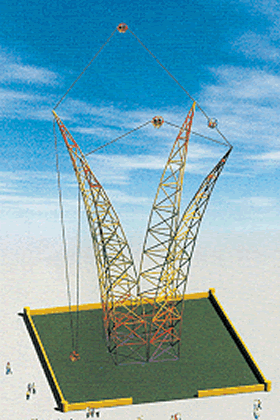

Capable of cycling up to 240 passengers per hour, the tower structure can be animated to incorporate a realistic looking palm tree design or the arms of a cartoon character. With imagination, themed possibilities are endless.

Each capsule in the 3-4 Tower Slingshot™ is powered by it's own spring machine and is operated independently. This ensures maximum flexibility and utilization of the equipment.

Technical Specifications, 3 Tower Model
Tower Height 36m - 66m
Capsule Height 55m - 100m
Required Space 20 m x 20 m
Estimated Capacity 180 passengers/hour
Power Required 200 kw
Operating Staff Minimum 6
Estimated Set Up Time 3 weeks
Concrete Foundation Required



Technical Specifications, 4 Tower Model
Tower Height 36m - 66m
Capsule Height 55m - 100m
Required Space 20 m x 20 m
Estimated Capacity 240 passengers/hour
Power Required 250 kw
Operating Staff Minimum 8
Estimated Set Up Time 4 weeks
Concrete Foundation Required

Technical drawing in PDF format: download
